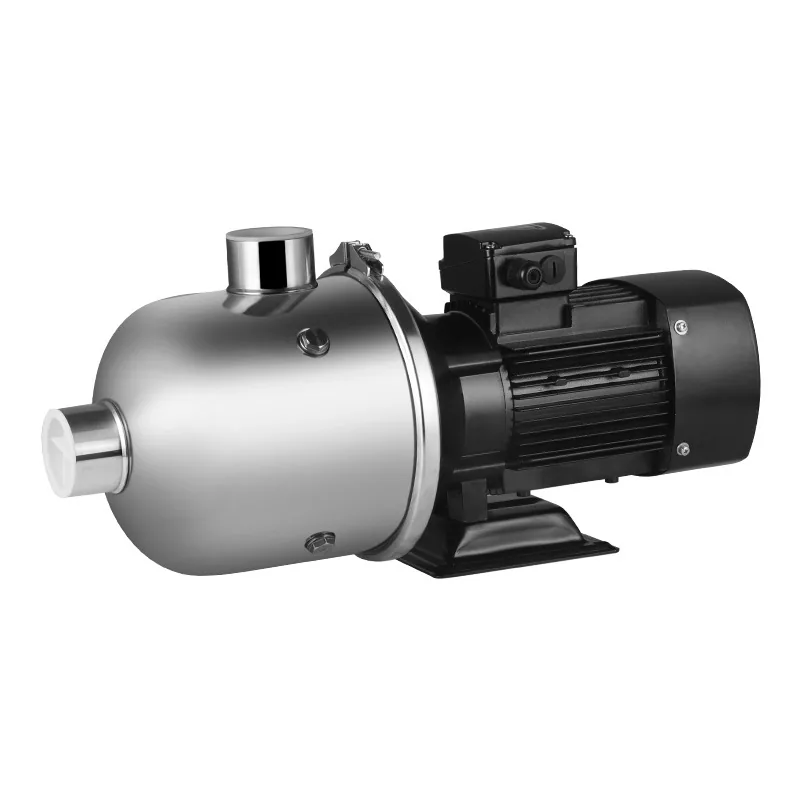

JDI Pump Industry supplies CHL-16, 20 square cylinder stainless steel multi-stage pump series

Product Attributes

Order Number: CHL16, 20-squareBrand: JiediItem Number: CHL16, 20-squareModel: CHL16, 20-square

Material: Stainless steelPerformance: Automatic

Purpose: Booster pumpDriving Mode: ElectricMedium to be Transported: Clean water pump

Pump Shaft Position: HorizontalImpeller Structure: Semi-open impellerImpeller Suction Mode: Single suction type

Flow Rate: 16 - 20 (m³/h)Number of Impellers: 2 - 3Head: 22 - 34 (m)Net Positive Suction Head (NPSH): 2 (m)Suction Inlet Diameter: 50 (mm)Discharge Outlet Diameter: 50 (mm)Stage Number: Multi-stageWeight: 30 (kg)

Voltage: 380, 220 (V)Power: 2.2 - 3 (kw)

Specifications: CHL16-2 380V, CHL16-2 220V, CHL16-3 380V, CHL16-3 220V, CHL20-2 380V, CHL20-2 220V, CHL20-3 380V, CHL20-3 220V

Whether it is a Special Supply Source for Cross-border Export: No

Detailed Introduction

This product is a booster pump with various excellent characteristics.

Identification and Basic InformationThe order number, item number, and model of this pump are all CHL16, 20-square, which makes it easy to identify and manage in the product line. The brand is Jiedi, known for its reliable quality in the pump manufacturing industry.

Material and PerformanceIt is made of stainless steel, ensuring its durability and resistance to corrosion. The automatic performance feature enables it to operate smoothly and efficiently without much manual intervention, providing convenience for users.

Function and Working PrincipleDesigned as a booster pump, its main purpose is to increase the pressure of the water flow. Driven by electricity, it can effectively transport clean water. The horizontal pump shaft position and semi-open impeller structure contribute to its stable operation and good fluid handling ability. The single suction type of the impeller ensures a certain flow rate and suction performance.

Technical Parameters

• Flow Rate: With a flow rate ranging from 16 to 20 cubic meters per hour, it can meet the water supply demands of different scenarios.
• Number of Impellers: Having 2 to 3 impellers, which affects the overall performance and pressure boost effect of the pump.
• Head: The head varies from 22 to 34 meters, indicating its ability to lift water to a certain height, suitable for applications where water needs to be pumped to higher levels.
• Net Positive Suction Head (NPSH): The NPSH of 2 meters is an important parameter related to the pump's suction performance, ensuring that there is no cavitation phenomenon during operation to maintain the normal operation of the pump.
• Suction Inlet and Discharge Outlet Diameters: Both the suction inlet and discharge outlet diameters are 50 millimeters, which is designed according to the flow rate and pressure requirements to ensure smooth water flow in and out of the pump.
• Stage Number: Being a multi-stage pump, it can achieve a higher pressure boost through multiple stages of impeller operation.
• Weight: Weighing 30 kilograms, it has a reasonable weight for installation and transportation.
• Voltage and Power: The pump can operate under voltages of 380 volts and 220 volts, with a power range of 2.2 to 3 kilowatts, providing flexibility in power supply options to meet different usage environments.

Specifications and Cross-border ExportThe product comes in various specifications such as CHL16-2 380V, CHL16-2 220V, CHL16-3 380V, CHL16-3 220V, CHL20-2 380V, CHL20-2 220V, CHL20-3 380V, CHL20-3 220V, allowing customers to choose according to their specific needs. And it is not a special supply source for cross-border export, mainly focusing on the domestic market or other specific target markets.

In conclusion, this pump with its comprehensive set of attributes is a reliable choice for applications requiring water pressure boosting, whether in industrial settings, commercial buildings, or some residential water supply systems.
