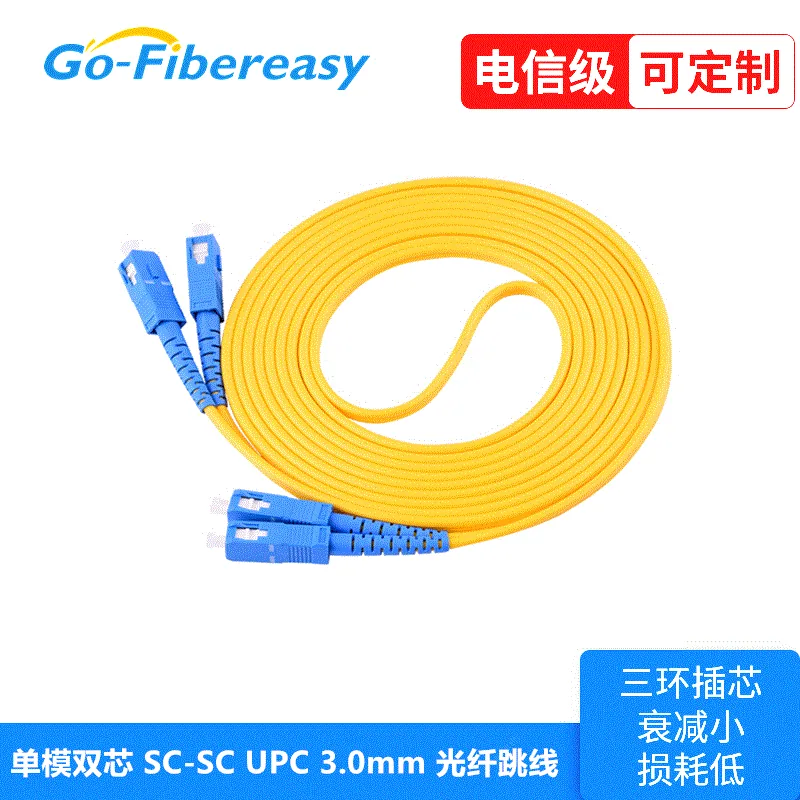

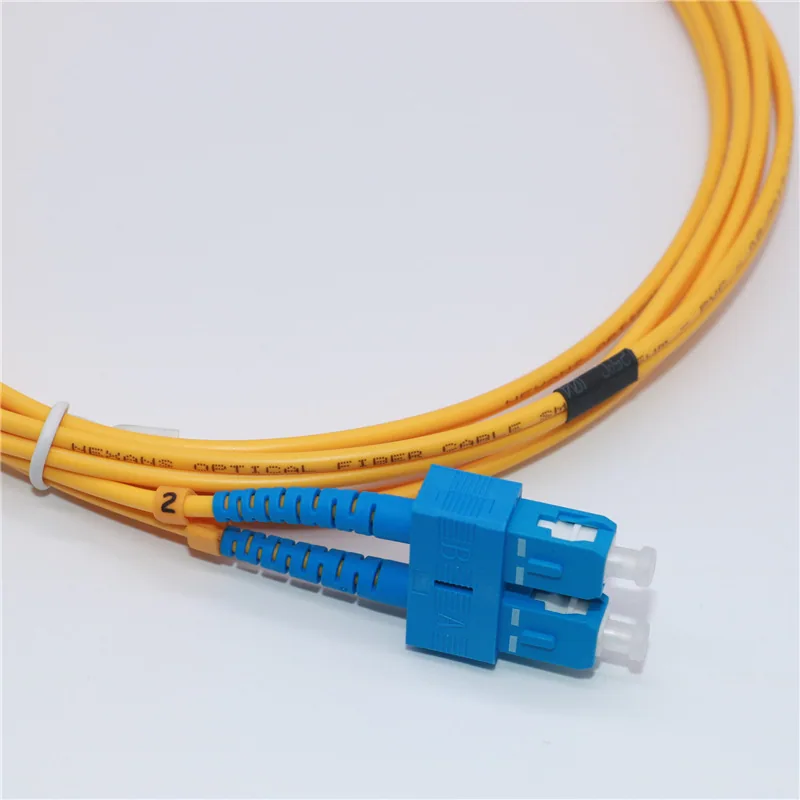

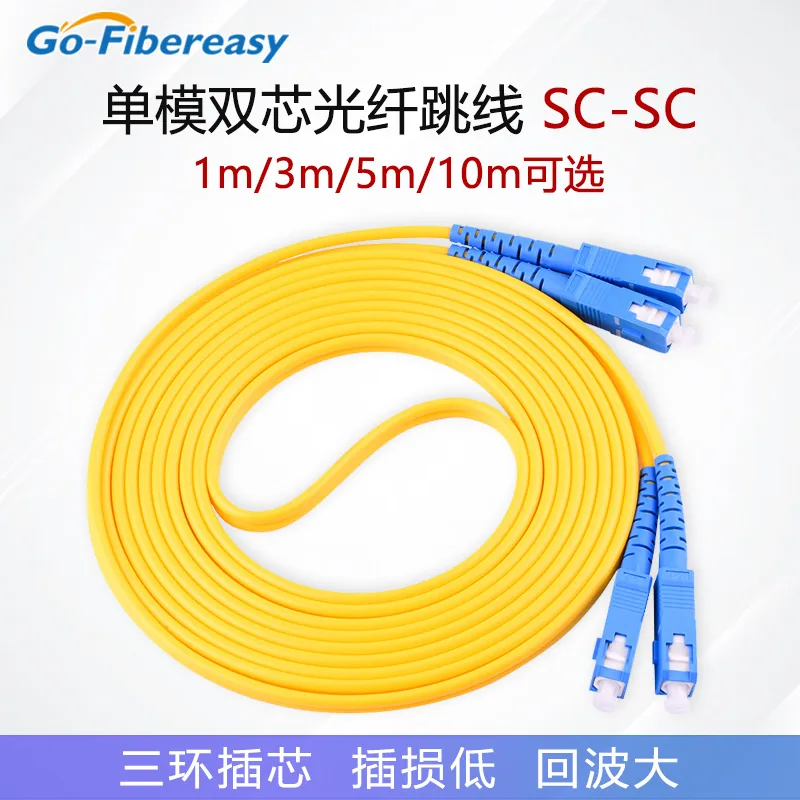

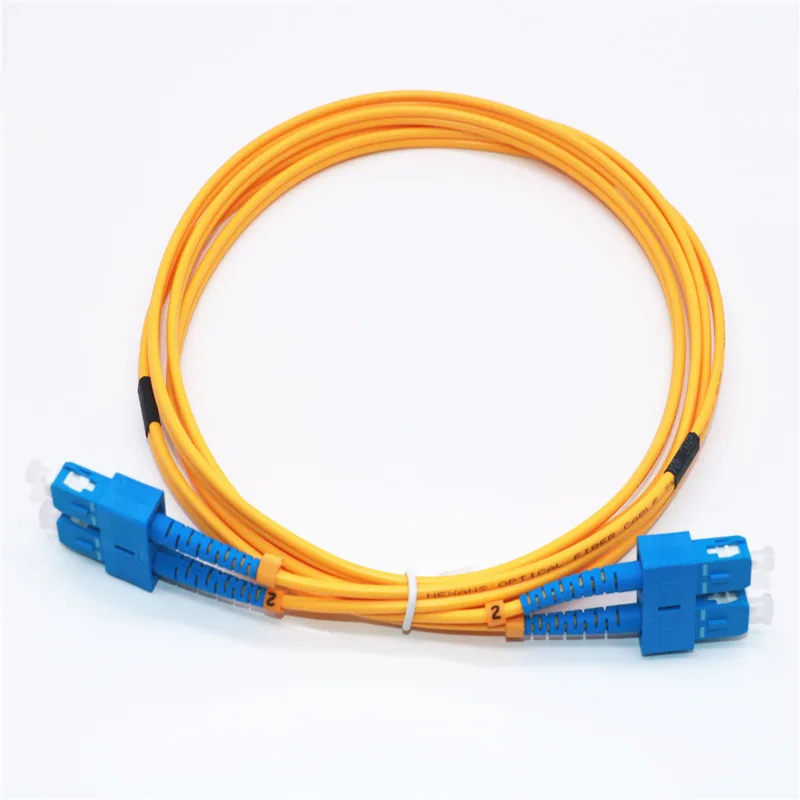

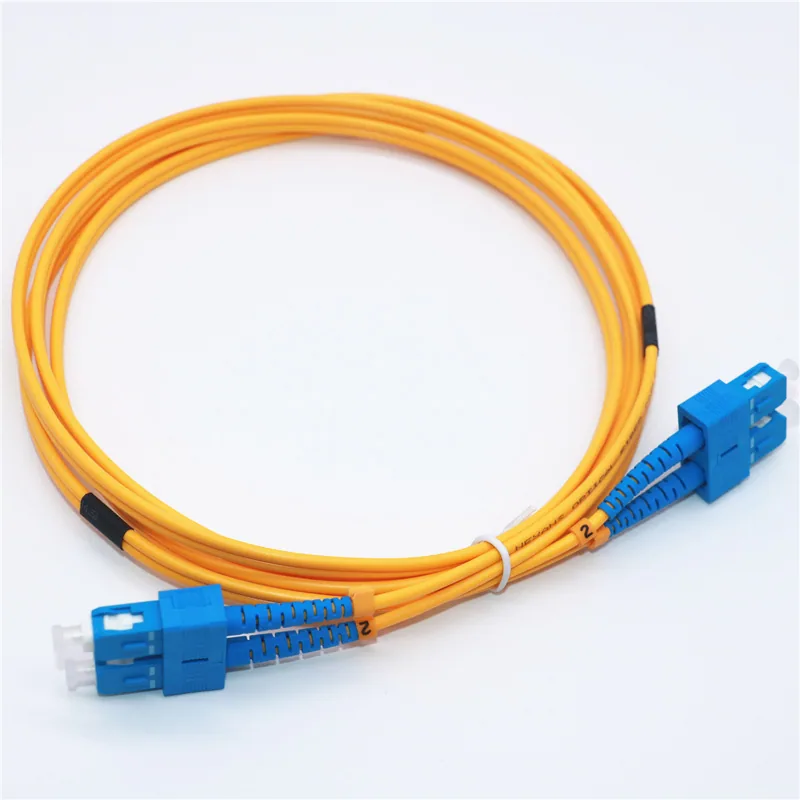

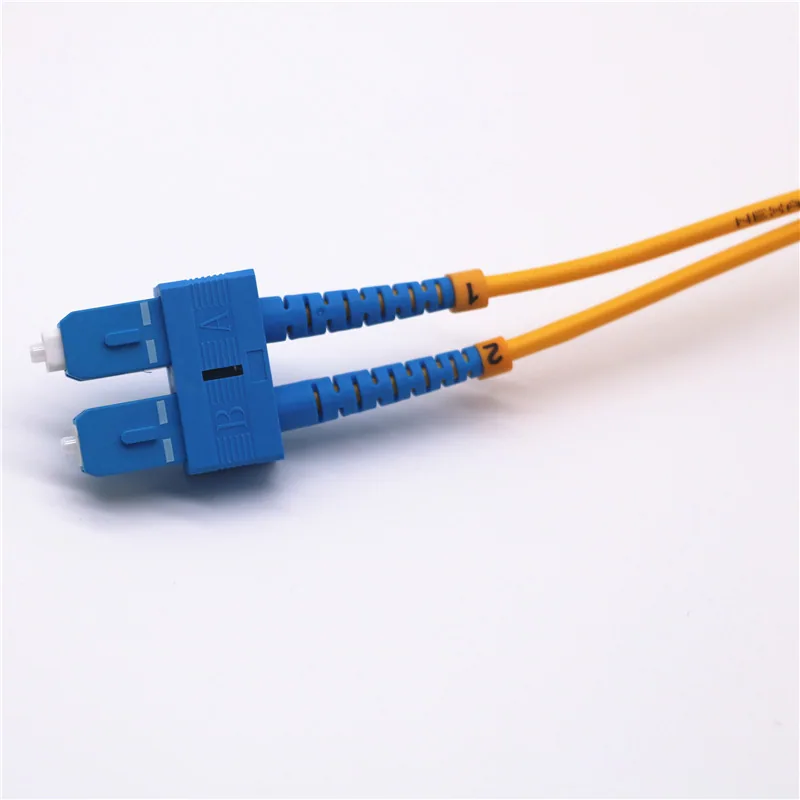

Single mode double core SC-SC fiber patch cord pigtail wire wholesale carrier grade large square mouth 3m 5m fiber optic cable

• Product Attributes
  • Model: SM2 - SC - SC - 3M
  • Item Number: 4003
  • Brand: Go - Fibereasy
  • Is it a Dedicated Supply Source for Cross - border Export: No
  • Cable Length: Can be customized to 1m, 3m, 5m, 7m, 10m, 15m, 20m
  • Fiber Optic Interface: SC/UPC - FC/UPC/ST/UPC/LCUPC
  • Fiber Type: Single - mode dual - core 9/125um

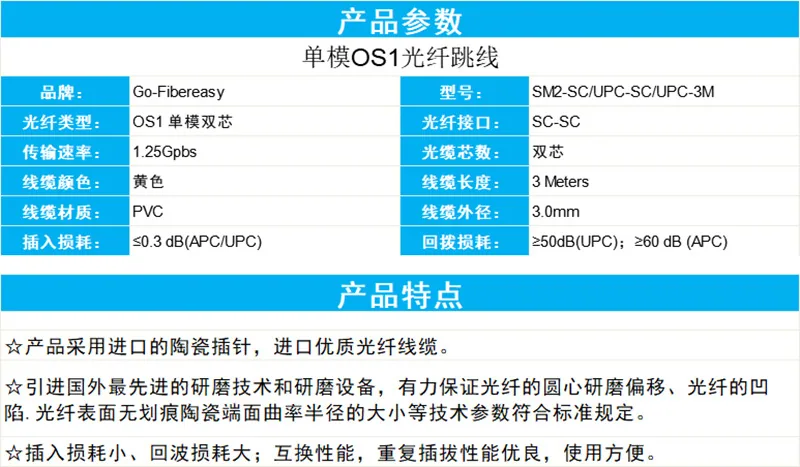

☆ Fiber type: OS1 single - mode dual - core☆ Fiber optic interface: SC/UPC - SC/UPC☆ Cable length: 3 meters☆ Number of optical cable cores: 2 cores☆ Cable color: Yellow☆ Cable material: PVC☆ Insertion loss: ≤0.3dB (APC/UPC)☆ Return loss: ≥50dB (UPC); ≥60dB (APC)☆ End - face type: PC, UPC and APC are optional☆ Inner coating diameter: 125μm☆ Core diameter: 50 / 62.5μm (multimode); 9μm (single - mode)☆ Outer diameter of optical fiber: 3.0mm☆ Tensile strength: 45kg (except for φ0.9mm optical fiber)☆ Number of repeated insertions and extractions: 1000 times☆ Minimum bending radius: 10 × cable diameter☆ Operating temperature: - 40℃— + 75℃☆ Storage temperature: - 50℃— + 85℃
