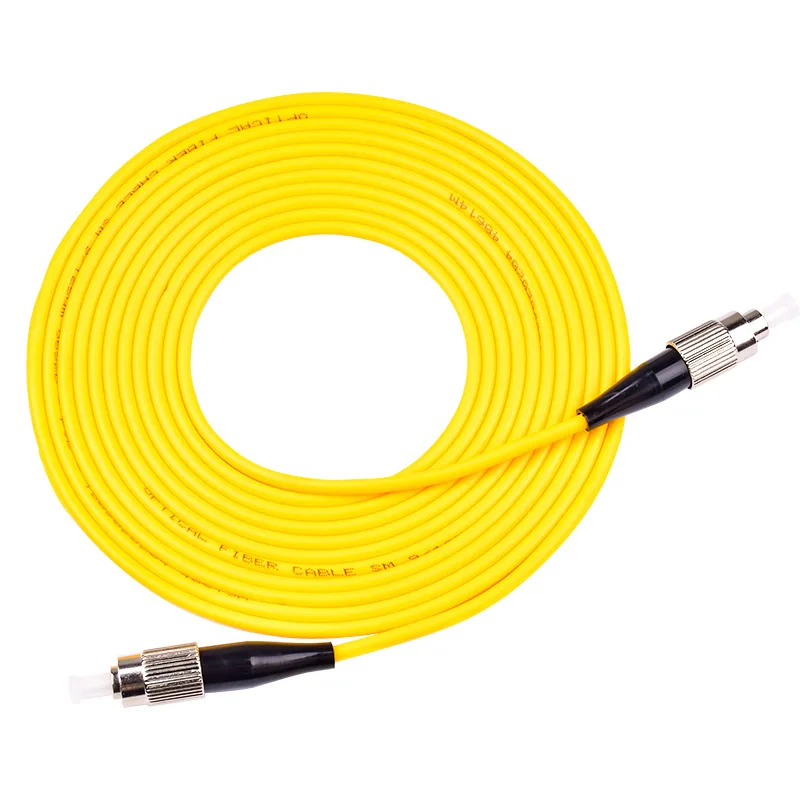

Carrier Grade Single Mode Single Core Fiber Optic Patch Cord FC-FC/SC/ST/LC Pigtail Cable 1m/2m/3m/5m Wholesale

Product Attributes

• Brand: Go - Fibereasy
• Item Number: FBYSMFCFC01
• Model: SM - FC/UPC - FC/UPC - 3M
• Number of Fiber Cores: 1 core
• Outer Diameter of Optical Cable: 3.0 (mm)
• Weight: 0.05 (kg/km)
• Allowable Tensile Strength: 0 (N)
• Allowable Lateral Pressure: Not available (N/100mm)
• Scope of Application: Optical fiber communication projects
• Main Downstream Platforms: ebay, Amazon, Wish, AliExpress, Independent websites, Lazada
• With Authorized Proprietary Brand: Yes
• Is it a Dedicated Supply Source for Cross - border Export: Yes
• Specifications: FC - FC 3.0mm 1m, FC - FC 3.0mm 2m, FC - FC 3.0mm 3m, FC - FC 3.0mm 5m, SC - FC 3.0mm 1m, SC - FC 3.0mm 3m, SC - FC 3.0mm 5m
• Fiber Type: Single - mode single - core optical fiber
• Fiber Optic Interface: FC - SC/FC/LC/...

Product Features

• Fiber Type: OS1 single - mode single - core
• Fiber Optic Interface: SC/UPC - SC/FC/ST/UPC
• Cable Length: 3m
• Number of Cable Cores: 1 core
• Cable Color: Yellow
• Cable Material: PVC
• Insertion Loss: ≤0.3dB (APC/UPC)
• Return Loss: ≥50dB (UPC); ≥60dB (APC)
• End - face Type: PC, UPC, and APC are available
• Inner Coating Diameter: 125μm
• Core Diameter: 50/62.5μm (multimode); 9μm (single - mode)
• Outer Diameter of Fiber: 3.0mm
• Tensile Strength: 45kg (except for φ0.9mm fiber)
• Number of Repeated Insertions and Extractions: 1000 times
• Minimum Bending Radius: 10 × cable diameter
• Operating Temperature: - 40℃ - + 75℃
• Storage Temperature: - 50℃ - + 85℃
